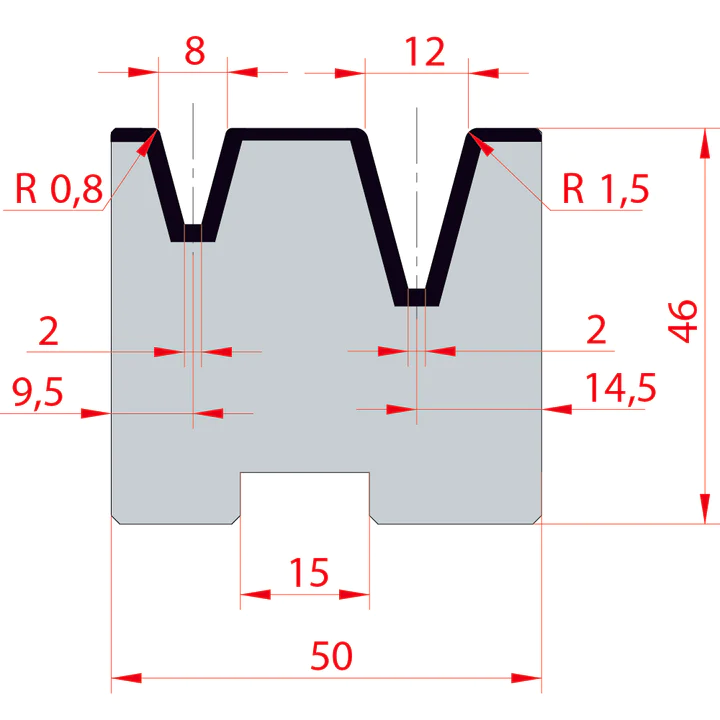

System Amada 30°/V8-V12/H46- 30° 2-way rotary Matrix

Specifications:

• Angle: 30°
• Opening V:V8-V12mm
• Radius:1.5mm
• Height: 46mm
• Max. force: 40t/m
• Material: 42CrMo
• Hardness: 47-50 HRC
• Mounting system: Amada/Promecam
