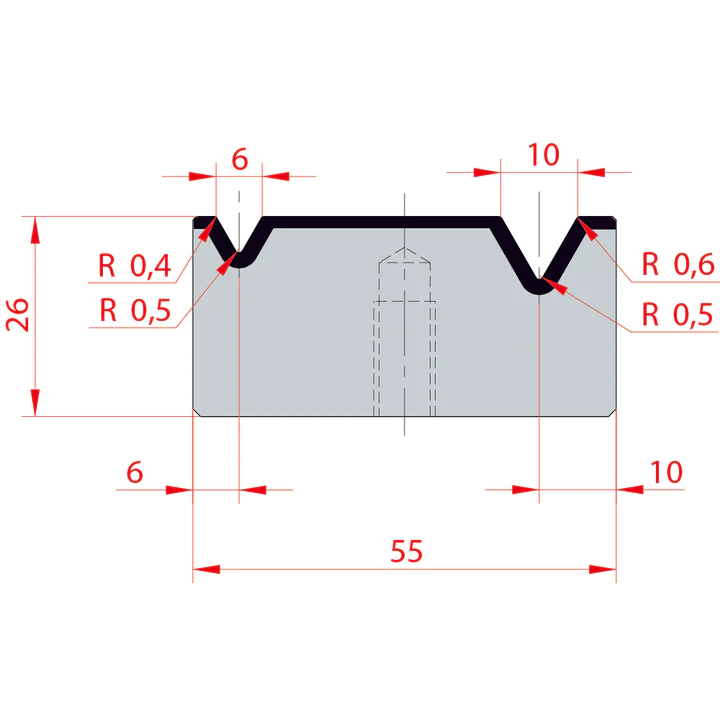

System Amada 60°/V6-V10/H26-60° 2-way rotary Matrix

Specifications:

• Angle: 60°
• Opening V:V6-V10mm
• Radius:0.5mm
• Height: 26mm
• Max. force: 60t/m
• Material: 42CrMo
• Hardness: 47-50 HRC
• Mounting system: Amada/Promecam
