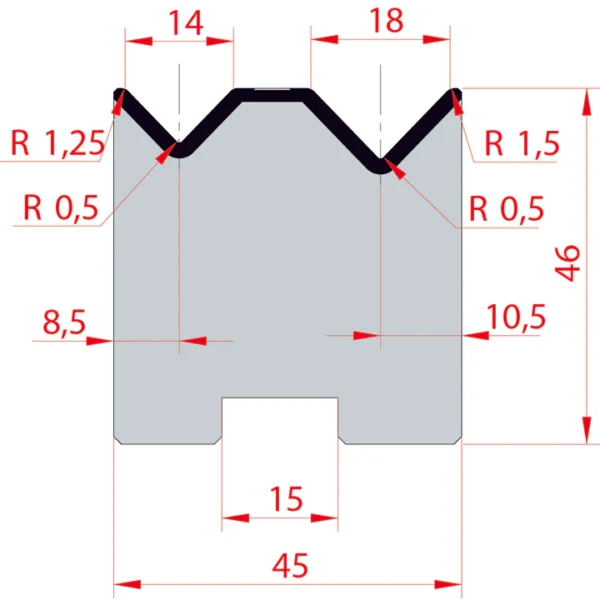

System Amada 88°/V14-V18/H46- 88° 2-way rotary Matrix

Specifications:

• Angle: 88°
• Opening V:V14-V18mm
• Radius:0.5mm
• Height: 46mm
• Max. force: 80t/m
• Material: 42CrMo
• Hardness: 47-50 HRC
• Mounting system: Amada/Promecam
