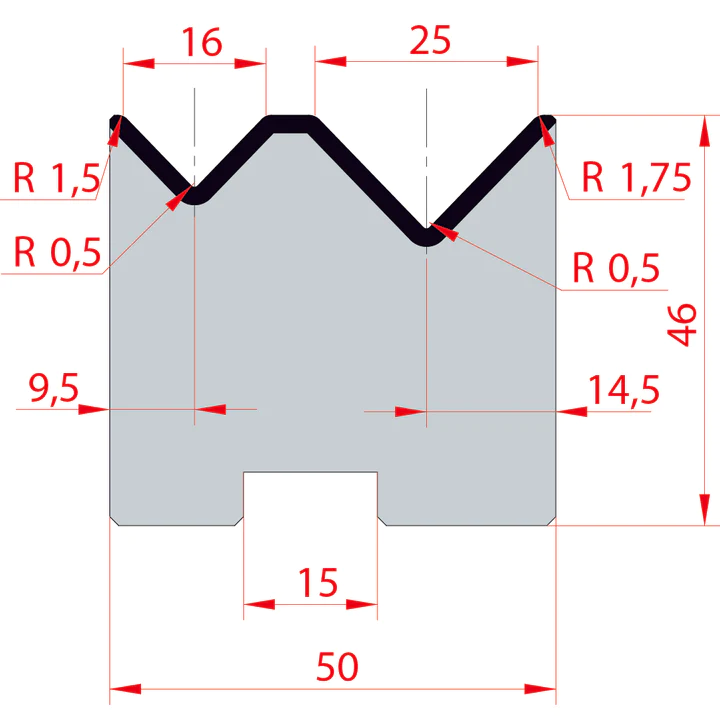

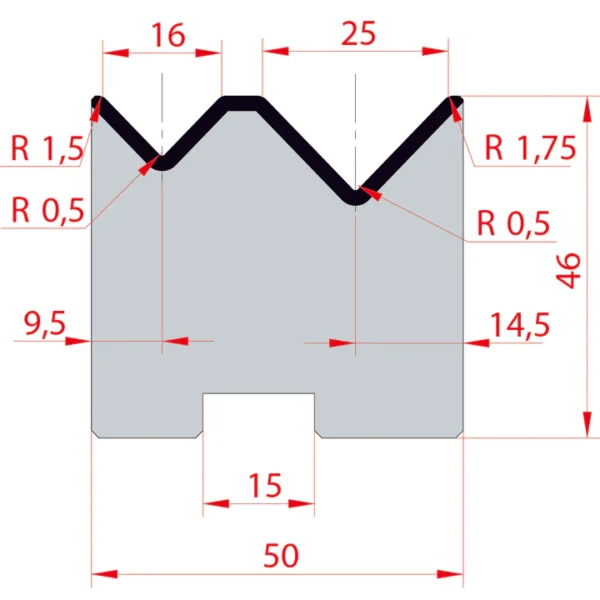

System Amada 88°/V16-V25/H46- 88° 2-way rotary Matrix

Specifications:

  • Angle: 88°
  • Opening V:V16-V25mm
  • Radius:0.5mm
  • Height: 46mm
  • Max. force: 80t/m
  • Material: 42CrMo
  • Hardness: 47-50 HRC
  • Mounting system: Amada/Promecam
